Chapter 5: Developing Functions

Chapter 2 provided a high-level conceptual explanation of functions. We discussed how this architecture enables us to develop functions in different languages, frameworks and runtimes. In this chapter, we are going to look at different approaches to developing functions.

Before you start developing your custom function, check out the Functions Catalog in case there is an existing function that meets your needs. This is an ever-growing catalog of functions that we consider to be generally useful to many users. If your use case fits that description, please open a feature request for adding a function to the catalog.

Approaches #

Creating Custom Images #

With this approach you create a custom container image which can execute programs in an arbitrary language or encapsulate existing tools as long as it satisfies the KRM Functions Specification we will see later in this chapter.

To simplify development, we provide a framework for developing functions in Go. We will cover it later in this chapter.

Authoring Executable Configuration #

Instead of developing a custom image, you can use an existing function image containing a language interpreter, and provide your business logic in a KRM resource. This is referred to as executable configuration. We will see two examples of executable configuration pattern in this chapter.

Although using executable configuration saves some time initially, it can become an anti-pattern if it grows in complexity. We recommend their use only if:

There is a small amount of logic (< 20 lines)
You do not forsee this logic growing in complexity in the future

Otherwise, you are better off developing functions in a general-purpose language where you can take advantage of proper abstractions and language features, better testing, rich IDE experience, and existing libraries.

Function Properties #

As you think about how to formulate your function, keep in mind the following desired properties:

Deterministic #

Executing a function with the same input should produce the same output. For example, a function that annotates a resource with the current timestamp is not deterministic.

Note that input to the function includes both input items and the functionConfig:

Idempotent #

Executing a function a second time should not produce any change. For example, a function that increments value of the replicas field by 1 is not idempotent. Instead, the function could take the desired value of the replicas field as input.

This property enables in-place edits to work and is analogous to the level-driven reconciliation model of the Kubernetes system.

Hermetic and Unprivileged #

If possible, try to formulate your function to be hermetic. We discussed this in detail in chapter 4.

Functions Specification #

In order to enable functions to be developed in different toolchains and languages and be interoperable and backwards compatible, the kpt project created a standard for the inter-process communication between the orchestrator (i.e. kpt CLI) and functions. This standard was published as the KRM Functions Specification and donated to the CNCF as part of the Kubernetes SIG-CLI.

Understanding this specification enables you to have a deeper understanding of how things work under the hood. It also enables to create your own toolchain for function development if you so desire.

As an example, you can see the ResourceList containing resources in the wordpress package:

kpt fn source wordpress | less

Developing in Go #

You can develop a KRM function in Go using the KRM function SDK. The source code of the SDK is available in Github.

Go is a general-purpose programming language that is more suitable and robust than Domain Specific Languages (DSL) for writing functions that manipulate KRM. Go provides:

Proper abstractions and language features
An extensive ecosystem of tooling (e.g. IDE support)
A comprehensive catalog of well-supported libraries
Robust community support and detailed documentation

Prerequisites #

Install kpt
Install Docker
Golang (at least version 1.19)

Quickstart #

In this quickstart, we will write a function called “set-annotation” that adds an annotation config.kubernetes.io/managed-by=kpt to all Deployment resources.

Set up your project #

We start from the get-started package int he KRM Funxtions SDK, which contains a main.go file with some scaffolding code.

Initialize your project.

# Set your KRM function name.
export FUNCTION_NAME=set-annotation

# Get the "get-started" package.
kpt pkg get https://github.com/kptdev/krm-functions-sdk.git/go/get-started@master ${FUNCTION_NAME}

cd ${FUNCTION_NAME}

# Initialize the Go module
go mod init
go mod tidy

Write the KRM function logic #

Take a look at the main.go (as below) and complete the Run function.

// Copyright 2022-2025 The kpt Authors
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//      http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

package main

import (
	"context"
	"os"

	"github.com/kptdev/krm-functions-sdk/go/fn"
)

var _ fn.Runner = &YourFunction{}

// TODO: Change to your functionConfig "Kind" name.
type YourFunction struct {
	FnConfigBool bool
	FnConfigInt  int
	FnConfigFoo  string
}

// Run is the main function logic.
// `items` is parsed from the STDIN "ResourceList.Items".
// `functionConfig` is from the STDIN "ResourceList.FunctionConfig". The value has been assigned to the r attributes
// `results` is the "ResourceList.Results" that you can write result info to.
func (r *YourFunction) Run(ctx *fn.Context, functionConfig *fn.KubeObject, items fn.KubeObjects, results *fn.Results) bool {
	// TODO: Write your code.
	return true
}

func main() {
	runner := fn.WithContext(context.Background(), &YourFunction{})
	if err := fn.AsMain(runner); err != nil {
		os.Exit(1)
	}
}

The fn library provides a series of KRM level operations for ResourceList. Basically, the KRM resource ResourceList.FunctionConfig and KRM resources ResourceList.Items are both converted to KubeObject objects. You can use KubeObject in a similar manner to unstructured.Unstructured.

The set-annotation function (see below) iterates the ResourceList.Items, finds out the Deployment resources and adds the annotation. After the iteration, it adds some user message to the ResourceList.Results

func (r *YourFunction) Run(ctx *fn.Context, functionConfig *fn.KubeObject, items fn.KubeObjects, results *fn.Results) bool {
	for _, kubeObject := range items {
		if kubeObject.IsGVK("apps", "v1", "Deployment") {
			kubeObject.SetAnnotation("config.kubernetes.io/managed-by", "kpt")
		}
	}
	// This result message will be displayed in the function evaluation time.
	*results = append(*results, fn.GeneralResult("Add config.kubernetes.io/managed-by=kpt to all `Deployment` resources", fn.Info))
	return true
}

Learn more about the KubeObject from the go documentation.

Test the KRM function #

The “get-started” package contains a ./testdata directory. You can use this to test out your functions.

# Edit the `testdata/test1/resources.yaml` with your KRM resources.
# resources.yaml already has a `Deployment` and `Service` as test data.
vim testdata/test1/resources.yaml

# Convert the KRM resources and FunctionConfig resource to `ResourceList`, and
# then pipe the ResourceList as StdIn to your function
kpt fn source testdata | go run main.go

Verify the KRM function behavior in the StdOutput ResourceList by looking for the new annotation on the “nginx-deplyment”:

apiVersion: apps/v1
kind: Deployment
metadata: # kpt-merge: /nginx-deployment
  name: nginx-deployment
  annotations:
    config.kubernetes.io/managed-by: kpt

Provide function configuration to the KRM function #

Let’s amend the example to set the “config.kubernetes.io/managed-by” annotation to a value we provide.

Change the implementaiton of the Run function above as follows. Change the line:

kubeObject.SetAnnotation("config.kubernetes.io/managed-by", "kpt")

kubeObject.SetAnnotation("config.kubernetes.io/managed-by", r.FnConfigFoo)

The annotation value will be set from the value of the FnConfigFoo field.

Create the configuration information so that we can concatenate it onto the ResourceList generated by the kpt fn source command. This configuration specifies that the “config.kubernetes.io/managed-by” annotation should be set to a value of “bar”.

cat > fn-config.yaml  <<\EOF
functionConfig:
  apiVersion: fn.kpt.dev/v1alpha1
  kind: YourFunction
  metadata: # kpt-merge: /test
    name: test
    annotations:
      internal.kpt.dev/upstream-identifier: 'fn.kpt.dev|YourFunction|default|test'
  fnConfigFoo: bar
EOF

Run the KRM function

{kpt fn source testdata; cat fn-config.yaml} | go run main.go

Look for the “config.kubernetes.io/managed-by” annotation in the standard output:

apiVersion: apps/v1
kind: Deployment
metadata: # kpt-merge: /nginx-deployment
  name: nginx-deployment
  annotations:
    config.kubernetes.io/managed-by: bar

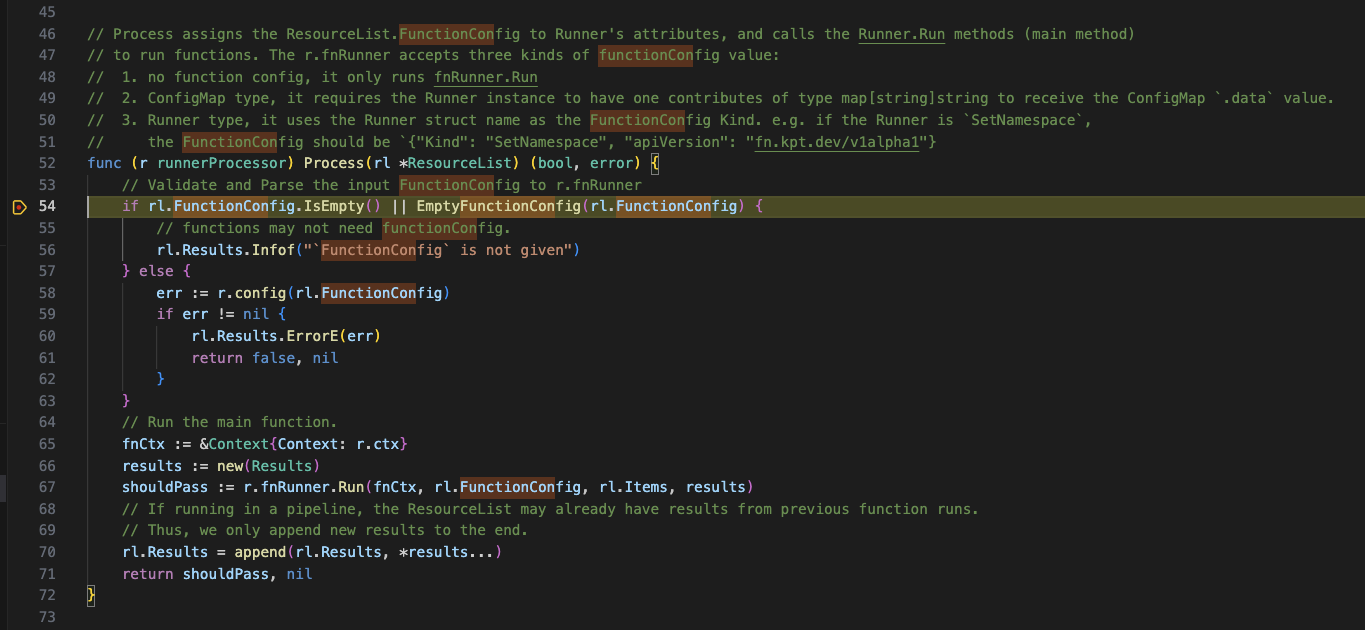

Debug the KRM function in VSCode #

Open VSCode in the main directory of the KRM function. Use a “.vscode/launch.json” file to set the KRM function launch configuration for debugging:

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "Launch KRM function",
            "type": "go",
            "request": "launch",
            "mode": "auto",
            "program": "${workspaceFolder}",
            "console": "integratedTerminal"
        }
    ]
}

You launch your KRM function in VSCode with the “Launch KRM function” configuration. Paste the ResourceList yaml (output of the kpt fn source testdata plus your function configuraiton) into the VSCode terminal and type “ctrl-D” (EOF) so that the KRM function can read the ResourceList from its standard input. You can now debug the KRM function in the VSCode debugger.

Build the KRM function as a Docker image #

Build the image

The “get-started” package provides the Dockerfile that you can download using:

wget https://raw.githubusercontent.com/kptdev/krm-functions-sdk/master/go/kfn/commands/embed/Dockerfile

export FN_CONTAINER_REGISTRY=<Your GHCR or docker hub>
export TAG=<Your KRM function tag>
docker build . -t ${FN_CONTAINER_REGISTRY}/${FUNCTION_NAME}:${TAG}

To verify the image using the same ./testdata resources

kpt fn eval ./testdata/test1/resources.yaml --image ${FN_CONTAINER_REGISTRY}/${FUNCTION_NAME}:${TAG}

Next Steps #

See other go documentation examples to use KubeObject.
To contribute to KRM catalog functions, please follow the contributor guide
